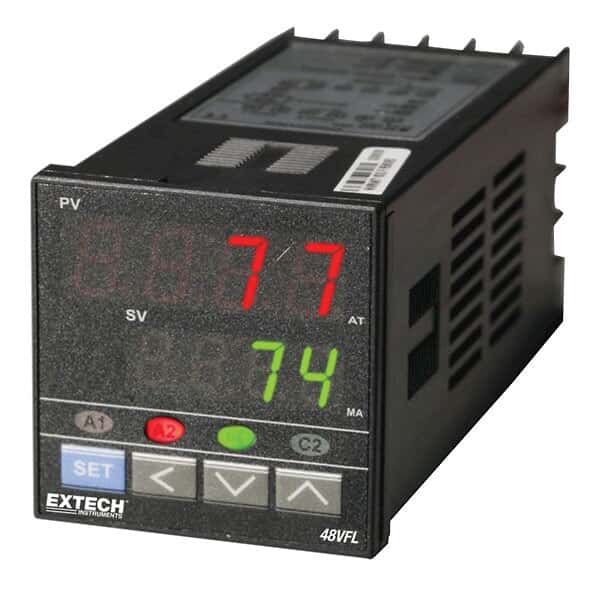

Extech 48VFL11 1/16 DIN PID Temperature controller with one relay output

Name: Extech 48VFL11 1/16 DIN PID Temperature controller with one relay output
Brand: Extech
SKU: 8980203
Price: 202.43 GBP
Availability: OutOfStock

Zoom Image

Representative image only.

Add to Compare

Extech 48VFL11 1/16 DIN PID Temperature controller with one relay output

Extech | Mfr: 48VFL11| Item: 8980203

Fuzzy Logic PID, Auto Tuning, and Soft Start features combine for uncompromising, state-of-the-art control

Dual 4-digit LED displays for process and setpoint values ... READ MORE

£202.43GBP / Each

£242.92GBP (incl VAT)

Add To Cart

+ADD TO LIST

PRODUCT OPTIONS

See All 4 Items in this Product Family

Include Calibration Services

InnoCal NIST-Traceable Calibration; Thermocouple Meter (Meter)

for an additional

£188.87GBP / Each

£226.64GBP (incl VAT)

InnoCal A2LA ISO17025 Accredited Calibration; Thermocouple Meter (Meter)

for an additional

£243.50GBP / Each

£292.20GBP (incl VAT)

Time to Re-Calibrate Your Instrument?
Learn more about our calibration services

Product Description

Key Features

Dual 4-digit LED displays for process and setpoint values
1/16 DIN and 1/4 DIN model dimensions available
Easy programming & navigation with user-friendly menus and tactile keypad
Fuzzy Logic PID offers intuitive control simulating human control logic
Manual mode allows the user to override automatic control
One-touch Auto Tuning for quick setup and stable, precise control
Two ‘Latching’ Alarm relays standard with 8 Alarm modes plus advanced Timer modes
Single stage Ramp and Soak program with Ramp-to-Setpoint Limit
Accepts thermocouple and RTD inputs
Select desired temperature display units (°F or °C) from setup menu
Select thermocouple input type (9 selections) or RTD input (2 selections) from the display menu Complete with mounting bracket hardware and screw terminals for easy wiring
1 year warranty

More About this Item

Extech controllers offer Fuzzy Logic enhanced PID and a Soft-Start feature that protects heaters from cold-starts. PID plus Fuzzy Logic tackles even the most demanding applications, eliminating over-shoot, unwanted process fluctuations, and drift. The Soft Start feature is ideally suited for processes, such as those employed in the Thermo-Plastics industry, where careful, exact, and slow heating of product is required.

Specifications

DIN Size1/16
Max Temperature (° F)122
Min Temperature (° F)14
Min Temperature (° C)-10
Max Temperature (DegreeC)50
Accuracy±1.8⁰F /1C) Thermocouple, ±36⁰F (0.2⁰C) RTD
Control Output 1Relay: SPST
Control Output 2Relay: SPST
Power (VAC)90 to 264
Description1/16 DIN PID Temperature controller with one relay output
Warranty1 Year
