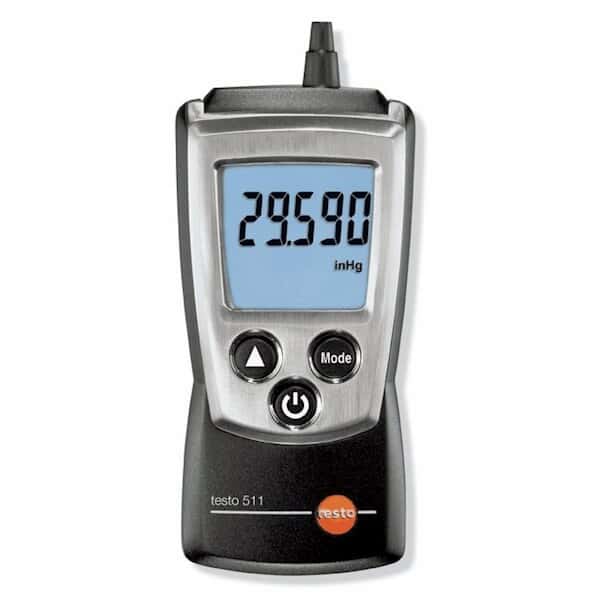

Testo 0560 0511 Pressure and Altitude Meter, 0 to 40.15" WC

Representative image only.
Testo Mfr # 0560 0511 – Item # WZ-68438-78
Pocket sized for fast and tough everyday use
  • Measures absolute pressure and calculates barometric pressure
  • Highly accurate

£243.85GBP / Each
£292.62GBP (incl VAT)

£159.35 - £197.25GBP / Each
£191.22 - £236.70GBP (incl VAT)

for an additional
£159.35GBP / Each
£191.22GBP (incl VAT)
for an additional
£197.25GBP / Each
£236.70GBP (incl VAT)
Time to recalibrate? Click on the calibration service to view details, then order.

SPECS & DESCRIPTION

Specifications & Description

  • Accuracy±0.01 \" WC (below 0.12\" WC); ±0.02\" WC (0.12 to 0.4\" WC); ±0.04\" WC + 1.5% of reading (above 0.4\" WC)
  • Min Pressure (in WC)0
  • Max Pressure (in WC)40.15
  • Min Temperature (° F)32
  • Max Temperature (° F)132
  • Min Temperature (° C)0
  • Max Temperature (° C)60
  • Process Connection1/4\" hose barb
  • Unit Of MeasurementhPa, mbar, Pa, mm WC, mm Hg, \" WC, \" Hg, psi
  • Display2-line LCD
  • Battery Type2 AAA (included)
  • Media CompatibilityNoncorrosive gases
  • Resolution0.01\" WC
  • Depth (in)1
  • Height (in)4 1/2
  • Width (in)1 3/4
  • Depth (cm)2.5
  • Height (cm)11.4
  • Width (cm)4.4
  • DescriptionPressure and Altitude Meter, 0 to 40.15\" WC

Includes

2 AAA batteries.

Key Features

  • Measures absolute pressure and calculates barometric pressure
  • Highly accurate

More About this Item

Perform pressurization risk assessments for combustion air zones as well as room-to-room pressurization tests without running a reference hose.
