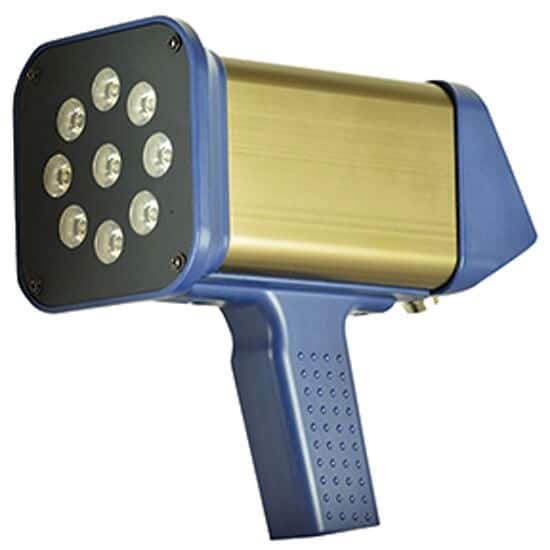

Shimpo ST-320BL-1 Black Light LED Stroboscope; 120 V

Name: Shimpo ST-320BL-1 Black Light LED Stroboscope; 120 V
Brand: Shimpo
SKU: 5350215
Price: 933.34 GBP
Availability: OutOfStock

Zoom Image

Representative image only.

Add to Compare

Shimpo ST-320BL-1 Black Light LED Stroboscope; 120 V

Shimpo | Mfr: ST-320BL-1| Item: 5350215

Illuminate UV inks used in labels, watermarks, security tags, and more

Versatile design — use portably or mount permanently ... READ MORE

£933.34GBP / Each

£1,120.01GBP (incl VAT)

Add To Cart

+ADD TO LIST

PRODUCT OPTIONS

See All 2 Items in this Product Family

Include Calibration Services

InnoCal NIST-Traceable Calibration; Stroboscope

for an additional

£154.63GBP / Each

£185.56GBP (incl VAT)

InnoCal A2LA ISO17025 Accredited Calibration; Stroboscope

for an additional

£217.41GBP / Each

£260.89GBP (incl VAT)

Time to Re-Calibrate Your Instrument?
Learn more about our calibration services

Product Description

Key Features

Versatile design — use portably or mount permanently
Use in almost any high-speed application with the wide flash range
Obtain reliable use from the long-life LED black light lamps — three to five year life-expectancy
Remove trigger handle to expose threads for mounted use
Allow process machinery to control flash rate with the input trigger function
1 year warranty

More About this Item

The ST-320BL stroboscope features nine high-powered, black light CREE LEDs — ideal for use in UV printing, packaging, textile, automotive, cable, mining, steel, chemical, optical, and medical industries for speed and frequency measurements. The wide flash range covers 60 to 120,000 flashes per minute (1 to 2000 Hz) and may be adjusted for sharper images and detailed inspections. The input trigger function allows process machinery to control the flash rate for automatic adjustments to process fluctuations.

What's included: a 6.5-ft (2-m) power cord and foam-lined metal carrying case.

Specifications

Min Flash Range (fpm)60
Max Flash Range (fpm)120000
Flash Resolution (fpm)0.1 from 60 to 12,000 fpm; 1 from 12,001 to 120,000 fpm
Flash Accuracy (fpm)0.01% ±1 digit full-scale at 77°F (25°C)
Input12 V pulse input (3 pin M-12)
Display Type6-digit backlit LCD
DescriptionBlack Light LED Stroboscope; 120 V
Warranty1 Year
