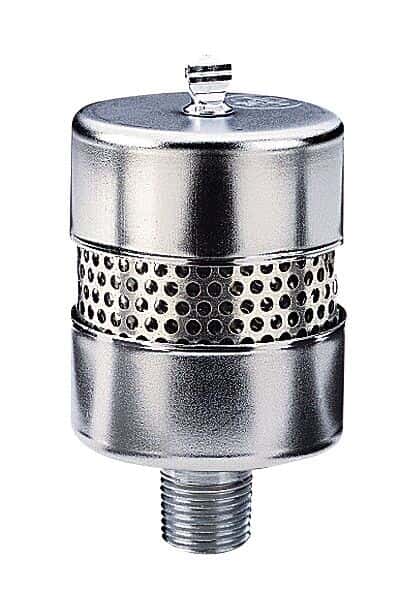

Rotary Vane Vacuum Pump Oil Mist Filter, 4.5 cfm, NW 16

Representative image only.

Rotary Vane Vacuum Pump Oil Mist Filter, 4.5 cfm, NW 16

| Mfr: EF-FG5-NW16| Item: 7977508

Captures oil residue from exhaust of oil sealed vacuum pumps

£172.36GBP / Each
£206.83GBP (incl VAT)

£172.36GBP / Each
£206.83GBP (incl VAT)

Buy It Together

Current Item

Rotary Vane Vacuum Pump Oil Mist Filter, 4.5 cfm, NW 16
Rotary Vane Vacuum Pump Oil Mist Filter, 4.5 cfm, NW 16
7977508

£172.36GBP / Each
£206.83GBP (incl VAT)
+
Pfeiffer PK-001-106-T Vacuum Pump Oil, 1 Liter
7950049

£79.99GBP / Each
£95.99GBP (incl VAT)
+
FG5 Replacement Filter Element for Oil Mist Filters 79775-00, -02, -04, -06, and -08
7977550

£42.98GBP / Each
£51.58GBP (incl VAT)
=
Total Price 295.33 ADD 3 ITEMS TO CART

Customers Also Bought

Product Description

Key Features

  • Seamless drawn housing
  • Prevents oil blow back with auto sealing
  • Easy thumb screw access for maintenance
  • Enclosed housing allows for clean environment

More About this Item

Oil mist filters eliminate oil residue from collecting in your work area. Oil run-off from the filter returns to the pump. Filters contain polyester-wrapped fiberglass elements that coalesce 99.97% of emitted oil. Match the free-air capacity of your pump and outlet port size to the filter. Construction is nickel-chrome plated steel.

Specifications
  • Port SizeNW 16 Flange
  • Max Temperature (° F)200
  • Max Temperature (° C)93
  • Free Air Capacity (CFM)4.5
  • Housing Depth (cm)4.5
  • Height (in)11.43
  • Outside Diameter (OD) (in)2.2
  • Outside Diameter (OD) (cm)5.59
  • DescriptionVacuum Pump Accessories, oil mist filter, 4.5 cfm, NW 16
