USB cable with driver, hook, flat, v-groove, chisel, cone, extension rod, one 8.4 V rechargeable battery, AC adapter, cushioned carrying case, and a calibration document supplied by the manufacturer.
Key Features
USB, RS-232, Mitutoyo, and analog outputs
Large backlit graphic display
1,000-point data memory with statistics and outputs
Live load bar graph with set point markers
Programmable set points, with alarms and outputs
Peak readings and set points always displayed
Averaging mode - calculates average readings over time
External trigger mode - for switch contact testing or remotely stopping display update
Automatic data output via USB/RS-232
5 selectable units of measurement
Configurable audio alarms and key tones
Password protection, configurable for individual keys and calibration
3 year warranty
More About this Item

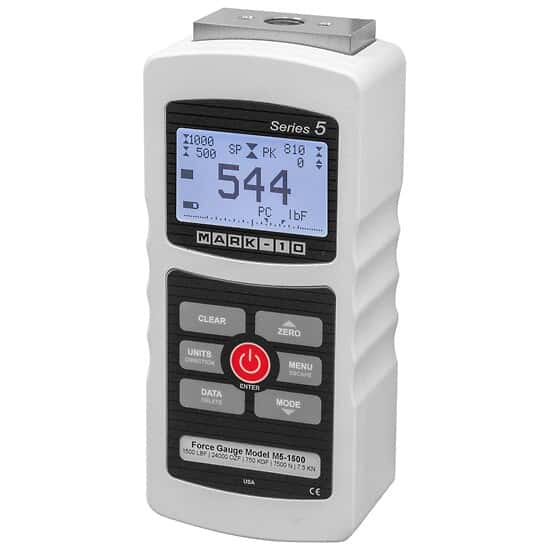

These force gauges are designed for tension and compression force testing in numerous applications across virtually every industry. The unique averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate. The simple menu navigation allows for quick access to many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. The ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Gauges are directly compatible with all Mark-10 equipment including the ESM300 series test stands.
Specifications
Capacity (oz)16000
Capacity (lbs)1000
Capacity (kg)500
Capacity (g)500000
Capacity (Newtons)5000
Capacity (kN)5
Resolution (oz)5
Resolution (lbs)0.5
Resolution (kg)0.2
Resolution (kN)0.002
Accuracy±0.1% full-scale
Sampling Rate7000 Hz
OutputUSB, RS-232, Mitutoyo, and analog
Overload200% of capacity
Display5-digit backlit LCD with graphic display
Data Storage1000 readings
Data OutputUSB, RS-232, Mitutoyo, and Analog
Max Operating Temperature (° F)100
Min Operating Temperature (° F)40
Max Operating RH (%)96
Height (in)6
Width (in)2.5
Depth (in)1.5
Battery life24 hours without backlight, 7 hours with backlight
