MESUR Lite and MESURgauge demo software, USB cable with driver, hook, flat, v-groove, chisel, cone, extension rod, cushioned carrying case, one 8.4 V rechargeable battery, AC adapter, and a calibration document supplied by the manufacturer.
Key Features
High speed 3,000 Hz peak sampling rate
USB, RS-232, Mitutoyo, and analog outputs
Backlit graphic display with large digits
50-point data memory with statistics and outputs
Live load bar graph with audio/visual overload alarms
Programmable go/no-go limits, with audio/visual alarms and outputs
Peak readings always shown on display
Ergonomic, reversible housing for handheld or test stand use
3 year warranty
More About this Item

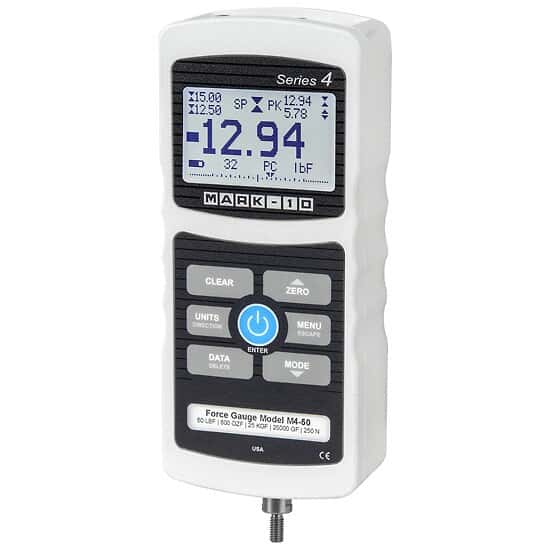

These digital force gauges satisfy many force measurement applications in an accurate, sophisticated, and easy-to-use package. The intuitive menu interface allows for simple navigation and the large backlit display makes access quick and easy to many features and configurable parameters. The lightweight ergonomic, reversible aluminum design allows for handheld use, or test stand mounting, providing additional flexibility based on your testing requirements. The USB, RS-232, Mitutoyo, and analog outputs provide easy downloading of data to a PC, while on-board memory of up to 50 readings makes field testing simple. The included MESUR Lite data acquisition software allows you to tabulate continuous or single point data, and offers single-click export capability to Excel for further data manipulation. These gauges are directly compatible with Mark-10 manual and motorized test stands on pages 1241 and 1244.
Specifications
Capacity (lbs)2
Capacity (kg)1
Capacity (Newtons)10
Resolution (lbs)0.001
Resolution (kg)0.0005
Resolution (Newtons)0.005
Accuracy±0.2% full-scale
Sampling Rate3000 Hz
OutputUSB, RS-232, Mitutoyo, and analog
Overload150% of capacity
Display5-digit backlit LCD with graphic display
Height (in)6
Width (in)2.5
Depth (in)1.5
Battery life24 hours without backlight, 7 hours with backlight
