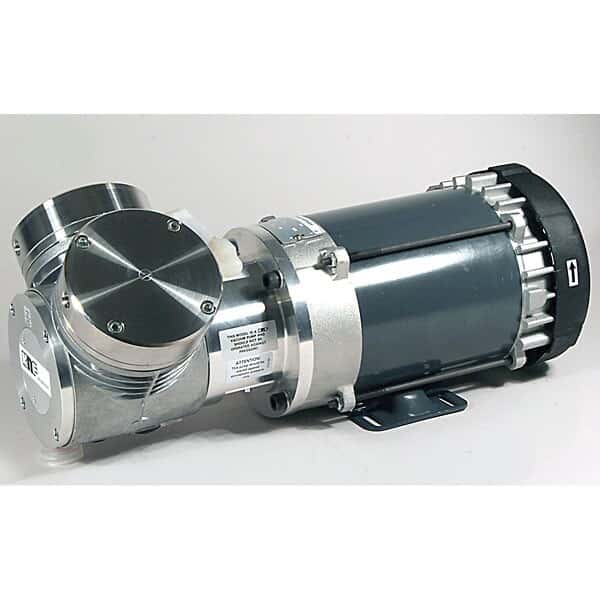

KNF UN035.3STI EX Explosion Proof Motor Vacuum Pump, 316SS/PTFE; 1.0 cfm/29.5"Hg

Name: KNF UN035.3STI EX Explosion Proof Motor Vacuum Pump, 316SS/PTFE; 1.0 cfm/29.5"Hg
Brand: KNF
SKU: 0705777
Price: 3554.14 GBP
Availability: OutOfStock

Zoom Image

Representative image only.

Add to Compare

KNF UN035.3STI EX Explosion Proof Motor Vacuum Pump, 316SS/PTFE; 1.0 cfm/29.5"Hg

KNF | Mfr: 072916/075823| Item: 0705777

Oversized, permanently lubricated bearings for long-term operation

Ideal for hazardous areas where flammable gases or vapors may be present ... READ MORE

£3,554.14GBP / Each

£4,264.97GBP (incl VAT)

Add To Cart

+ADD TO LIST

PRODUCT OPTIONS

See All 11 Items in this Product Family

Product Description

Key Features

Ideal for hazardous areas where flammable gases or vapors may be present
Rated for continuous, heavy-duty use
1 year warranty

More About this Item

Diaphragm pumps are fitted with Class I, Division 1, Groups C & D explosion-proof motors. Designed for continuous, heavy-duty use, ball bearings are used throughout to provide exceptional reliability. Models are fitted with a pre-wired connection box and are tested and ready to install into your system.

Contact one of our Application Specialists for assistance with selecting the proper pump for your needs.

Specifications

Wetted Parts316 Stainless Steel, PTFE
Free-Air Capacity (CFM)1
Free-Air Capacity (LPM)28.3
Free-Air Capacity (LPH)1698
Max Flow Rate (CFM)1.03
Max Flow Rate (Liters/min)29.2
Max Vacuum (in Hg)29.5
Max Vacuum (mbar)14.2
Max Vacuum (mm Hg)10.7
Max Vacuum (torr)10.7
Port Size1/4" NPT(F)
Max Temperature (° F)105
Max Temperature (° C)40
Duty CycleContinuous
Power (VAC)115 / 230
Power (amps)6.0
Power (Hz)50/60
Height (in)8.625
Width (in)10.25
Length (in)19.625
Height (cm)21.91
Width (cm)26.04
Length (cm)49.85
Height (mm)219.1
Width (mm)260.4
Length (mm)498.5
DescriptionExplosion Proof Motor Vacuum Pump, 316SS/PTFE; 1.0 cfm/29.5"Hg
Warranty1 Year
