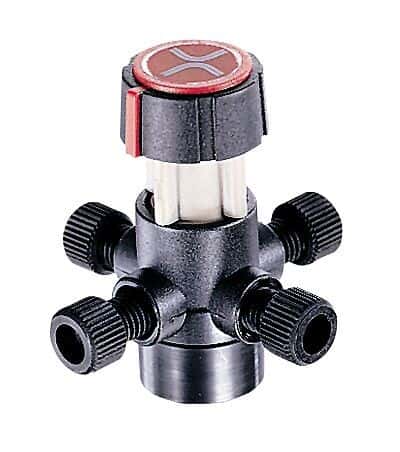

Idex Manual Switching Valve, Single Tee, Bulkhead, PEEK/PTFE, 4-Position, 4-Port; 1/EA

Representative image only.

Idex Manual Switching Valve, Single Tee, Bulkhead, PEEK/PTFE, 4-Position, 4-Port; 1/EA

Idex | Mfr: V-101T| Item: 0201579

Easily switch between two fluid paths without disconnecting the lines

£217.25GBP / Each
£260.70GBP (incl VAT)

£217.25GBP / Each
£260.70GBP (incl VAT)

Buy It Together

Current Item

Idex Manual Switching Valve, Single Tee, Bulkhead, PEEK/PTFE, 4-Position, 4-Port; 1/EA
Idex Manual Switching Valve, Single Tee, Bulkhead, PEEK/PTFE, 4-Position, 4-Port; 1/EA
0201579

£217.25GBP / Each
£260.70GBP (incl VAT)
+ +
Diba Omnifit® Small Bore Valve for 1 to 4 mm OD Tubing, 3-way, tee, single key; 1/ea
2194009

£180.64GBP / Each
£216.77GBP (incl VAT)
=
Total Price 594.57 ADD 3 ITEMS TO CART

Customers Also Bought

Product Description

Includes

Flangeless Black PEEK male nuts (4), flangeless natural ETFE ferrules 02019-74 (4), and black port plug 02013-77 (1).

Key Features

  • Enable connections among multiple fluid systems
  • Single tee
  • Bulkhead
  • Swept volume of 9.7 µL
  • 1/4-28 flat-bottom ports for 1/16" OD tubing
  • 1 year warranty

More About this Item

Manual valves serve well in applications that require operator control or involve lesser frequency of use or injection of smaller sample volumes. Shut off flow during cleaning, column replacement, or other operations without disconnecting the system.

1 Year Warranty
Specifications
  • Outlet Port1/4-28 flat bottom
  • Inlet Port1/4-28 flat bottom
  • Max Pressure (PSI)500
  • Max Pressure (bar)34
  • Wetted MaterialsPEEK/PTFE
  • Tubing OD (in)0.0625
  • Flow PatternFour-position
  • DescriptionManual Switching Valve, Single Tee, Bulkhead, PEEK/PTFE, 4-Position, 4-Port; 1/EA
  • Warranty1 year
