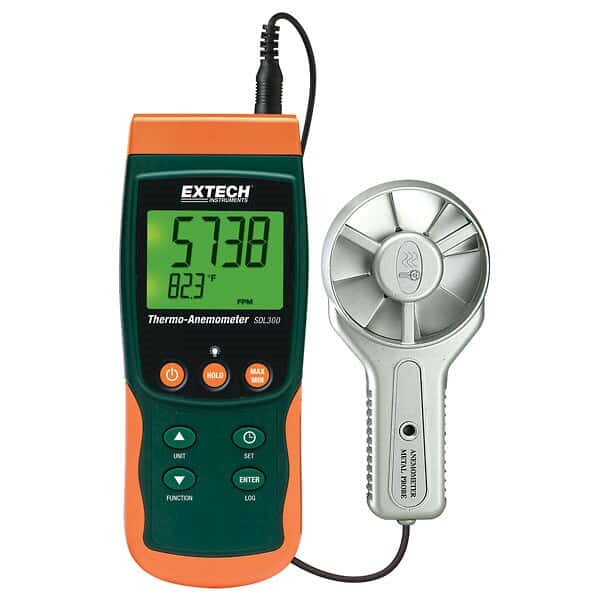

Extech SDL300 Data Logging Vane Thermoanemometer with SD Card Memory, Metal

Representative image only.

Extech SDL300 Data Logging Vane Thermoanemometer with SD Card Memory, Metal

Extech | Mfr: SDL300| Item: 1030004

Records data on an SD card in Excel® format for easy transfer to a PC for analysis

£513.55GBP / Each
£616.26GBP (incl VAT)

for an additional
£266.30GBP / Each
£319.56GBP (incl VAT)
for an additional
£386.49GBP / Each
£463.79GBP (incl VAT)
Time to Re-Calibrate Your Instrument?
Learn more about our calibration services

£513.55GBP / Each
£616.26GBP (incl VAT)

Buy It Together

Current Item

Extech SDL300 Data Logging Vane Thermoanemometer with SD Card Memory, Metal
Extech SDL300 Data Logging Vane Thermoanemometer with SD Card Memory, Metal
1030004

£513.55GBP / Each
£616.26GBP (incl VAT)
+
InnoCal NIST-Traceable Calibration; Anemometer, Vane-Type
1710101

£266.30GBP / Each
£319.56GBP (incl VAT)
+ =
Total Price 823.00 ADD 3 ITEMS TO CART
Product Description

Includes

Remote vane sensor, 2 GB SD memory card, hard carrying case, and six AA batteries.

Key Features

  • Metal vane withstands temperatures to 158°F (70°C) and air velocity to 6900ft/min
  • Data logger date/time stamps and stores readings on an SD card in Excel® format for easy transfer to a PC
  • Adjustable data sampling rate: 1 to 3600 seconds
  • Stores 99 readings manually and 20M readings via 2G SD card
  • Type K/J thermocouple input for high temperature measurements
  • Air velocity measurements in ft/min, m/s, mph, km/h, and knots
  • Large (9999 count) LCD displays air velocity and temperature simultaneously
  • 2% velocity accuracy via low friction ball bearing vane wheel on 39" (1m) cable
  • Record/recall MIN, MAX readings
  • Data hold plus auto power off with disable function
  • Built-in PC interface
  • 3 year warranty

More About this Item

These thermoanemometers operate over broad air velocity and temperature ranges — ideal for the HVAC professional. Large 9999-count dual LCD provides simultaneous air velocity and temperature measurements. Metal vane appropriate for applications where temperatures reach up to 158°F (70°C) and air velocities to 6900 ft/min (35 m/s).

The low-friction ball bearing vane wheel is connected to the meter by a 3.9 ft (1.2 m) long cable. Other features include record and recall of min/max readings, data hold, and auto power off with disable function. Accept external type J and K thermocouple inputs for higher temperature measurements to 2372°F (1300°C).

3 Year Warranty
Specifications
  • Max Air Velocity (ft/min)6900
  • Min Air Velocity (ft/min)60
  • Air Velocity Resolution1 ft/min (0.01 m/s)
  • Air Velocity Accuracy±2% of reading
  • Number Of Temperature Channels2
  • Types Of Probes AcceptedTypes J and K thermocouple
  • Min Temperature (° F)32
  • Max Temperature (° F)158
  • Min Temperature (° C)0
  • Max Temperature (° C)70
  • Temperature Accuracy±1.5°F (0.8°F/°C) <60°C
  • Temperature Resolution0.1°
  • Data LoggingYes
  • Data Storage (samples)20 M data records using 2 GB SD card
  • Logging Intervals1 second to 1 hour
  • Width (in)3
  • Height (in)2
  • Length (in)7 1/4
  • Battery6 AA (included)
  • DescriptionData Logging Vane Thermoanemometer with SD Card Memory, Metal
  • Warranty3 year
