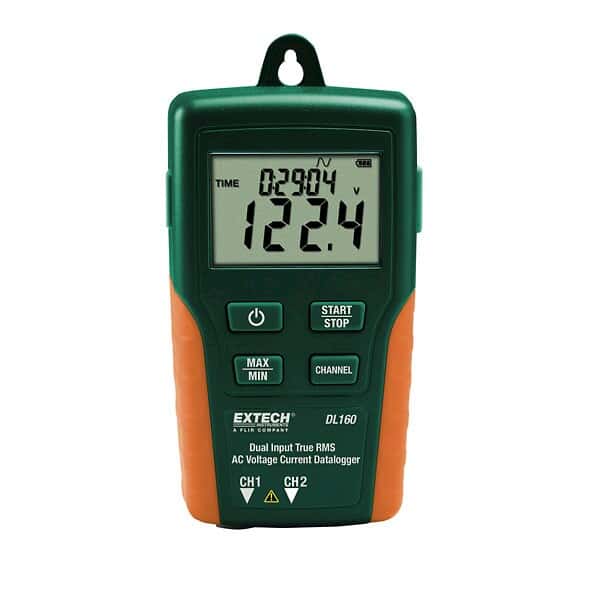

Extech DL160 Dual Input True RMS AC Voltage/Current Datalogger SKU 1800214

Extech DL160 Dual Input True RMS AC Voltage/Current Datalogger SKU 1800214
Zoom Image
Representative image only.
Add to Compare
Extech – Mfr # DL160 – Item # WZ-18002-14
Datalog up to 256,000 readings
  • Simultaneously measure two AC Voltage inputs or two AC Current inputs or one AC Voltage and one AC Current input
  • Download data to a PC via USB interface for analysis using included software or export to spreadsheet
  • LCD indicates time/date, current readings, and min/max
  • Auto power off and battery check
  • 1 year warranty
MORE +

£402.40GBP / Each
£482.88GBP (incl VAT)
Add To Cart
+ADD TO LIST

£218.47 - £233.74GBP / Each
£262.16 - £280.49GBP (incl VAT)

for an additional
£218.47GBP / Each
£262.16GBP (incl VAT)
for an additional
£233.74GBP / Each
£280.49GBP (incl VAT)
Time to recalibrate? Click on the calibration service to view details, then order.

SPECS & DESCRIPTION

Specifications & Description

  • Number of Channels2
  • Input TypeVoltage and current
  • Max Voltage (VDC)600
  • Min Voltage (VDC)10
  • Voltage Accuracy (VDC)±(2% rdg ±1 V)
  • Max Current (AAC)200
  • Min Current (AAC)10
  • Current Accuracy (AAC)±(2% rdg ±1 A)
  • Sampling Rate1 second to 24 hours, programmable
  • Memory Size256,000 points
  • Battery Type4 AAA (included)
  • Length (in)4 1/2
  • Height (in)2 1/2
  • Width (in)1 3/8
  • Length (cm)11.4
  • Height (cm)6.3
  • Width (cm)3.4
  • DescriptionDual Input True RMS AC Voltage/Current Datalogger
  • Warranty1 year
1 Year WarrantyConformite Europeenne

Key Features

  • Simultaneously measure two AC Voltage inputs or two AC Current inputs or one AC Voltage and one AC Current input
  • Download data to a PC via USB interface for analysis using included software or export to spreadsheet
  • LCD indicates time/date, current readings, and min/max
  • Auto power off and battery check
  • 1 year warranty
