Ashcroft Utility Gauge, 0 to 160 psi, 2" Dial, Bottom Connection

Name: Ashcroft Utility Gauge, 0 to 160 psi, 2" Dial, Bottom Connection
Brand: Ashcroft
SKU: 6800305
Price: 16.01 GBP
Availability: OutOfStock

Zoom Image

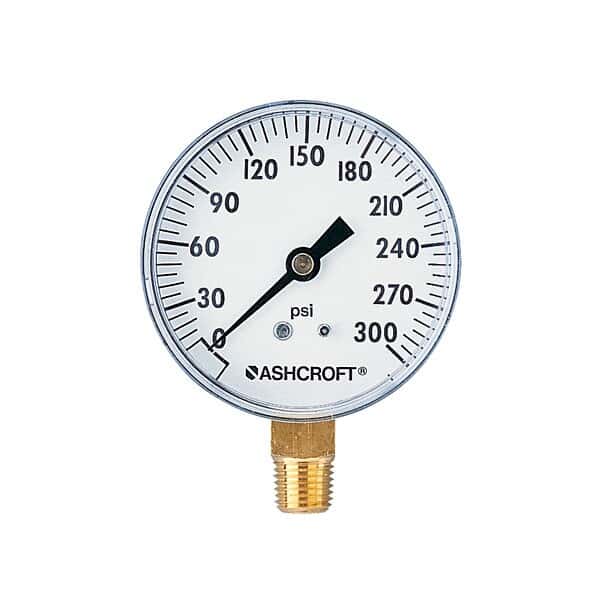

Representative image only.

Add to Compare

Ashcroft Utility Gauge, 0 to 160 psi, 2" Dial, Bottom Connection

Ashcroft | Mfr: 20-W-1005-H-01L-160#| Item: 6800305

Ideal to measure water, hydraulic oil, or gas pressure

True zero indication identifies damaged gauges—increases safety and ensures accuracy ... READ MORE

£16.01GBP / Each

£19.21GBP (incl VAT)

Add To Cart

+ADD TO LIST

PRODUCT OPTIONS

See All 20 Items in this Product Family

Include Calibration Services

InnoCal A2LA ISO17025 Accredited Calibration; Pressure/Vacuum Gauge, Accuracy ≤1%

for an additional

£229.84GBP / Each

£275.81GBP (incl VAT)

InnoCal NIST-Traceable Calibration; Pressure/Vacuum Gauge, Accuracy ≤1%

for an additional

£150.45GBP / Each

£180.54GBP (incl VAT)

Time to Re-Calibrate Your Instrument?
Learn more about our calibration services

Product Description

Key Features

True zero indication identifies damaged gauges—increases safety and ensures accuracy
1 year warranty

More About this Item

Gauges include brass socket, soft-soldered phosphor bronze Bourdon tube, painted steel case, and polycarbonate lens.

Specifications

Accuracy±3-2-3% full-scale (ANSI/ASME Grade B)
Dial Size (in)2
Dial Size (mm)51
Min Pressure (PSI)0
Max Pressure (PSI)160
Min Temperature (° F)-40
Max Temperature (° F)150
Min Temperature (° C)-40
Max Temperature (DegreeC)66
Wetted MaterialsBrass, phosphor bronze
CaseSteel
Lens MaterialPolycarbonate
Process Connection1/8" NPT(M), lower
Unit Of Measurementpsi
DisplayAnalog dial
Media CompatibilityGases and liquids compatible with wetted materials
Description0 to 160 psi Utility Gauge, 2" Dial, Bottom Connection
Warranty1 year
