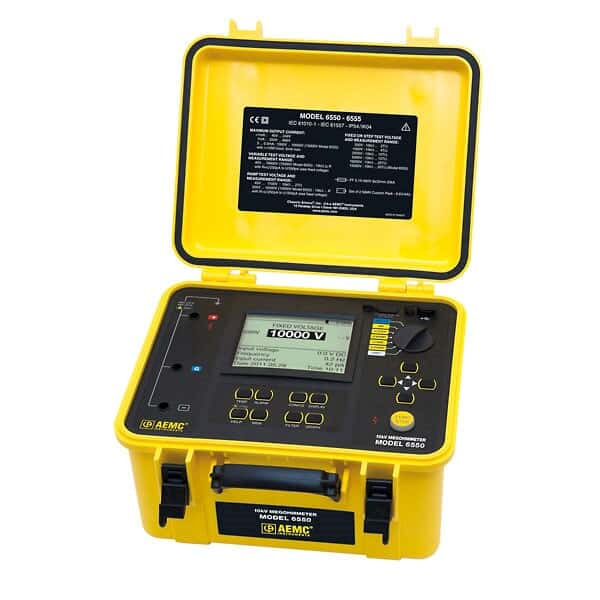

AEMC 6550 Digital Megohmmeter, 10 kV (0.001 to 9999 µF / 10.00 to 49.99 µF)

Name: AEMC 6550 Digital Megohmmeter, 10 kV (0.001 to 9999 µF / 10.00 to 49.99 µF)
Brand: AEMC
SKU: 2004351
Availability: OutOfStock

Representative image only.

AEMC | Mfr: 2130.3| Item: 2004351

Wide test range for additional application flexibility

Call For Price

Include Calibration Services

InnoCal NIST-Traceable Calibration, Megohmmeter

for an additional

£179.26GBP / Each

£215.11GBP (incl VAT)

for an additional

£242.23GBP / Each

£290.68GBP (incl VAT)

Time to Re-Calibrate Your Instrument?
Learn more about our calibration services

Product Description

Two leads and one guard test lead for high insulation measurements, eight NiMH rechargeable batteries, DataView® software, and soft accessory bag.

Wide measurement range from 10 kΩ to 30 TΩ;
Fixed or programmable test voltage from 40 V to 10/15 kV
5 mA charging current
Large backlit LCD screen with digital display, bargraph and R(t)+u(t), i(t), and i(u) graphs
Automatic calculation of DAR / PI / DD /▲R (ppm/V) ratios
Multiple test modes: voltage ramp and step with burning, early break, and I-limit modes
3 tiers to optimize measurement stability
Calculation of R at a reference temperature
Storage of 80,000 measurements and real-time clock
Optically-isolated USB communication for data transfer to PC and report generation with included DataView® software
1 year warranty

Specifications

DC Voltage Range (Voltage)500V: 10kΩ - 2000GΩ (2TΩ); 1000V: 10kΩ - 4000GΩ (4TΩ); 2500V: 10kΩ - 10,000GΩ (10TΩ); 5000V: 10kΩ - 15,000GΩ (15TΩ); 10,000V: 10kΩ - 25,000GΩ; 15,000V: -
Capacitance Range0.001 to 9999 μF or 10.00 to 49.99 μF
Data LoggingOptically-isolated port for USB and RS232 links
Memory256 recordings, 80,000 points: R, U, I and date
Compliance1000 V CAT IV; IEC 61010-1 and IEC 61557
Battery Type (VAC)8 NiMH (included)
Length (in)13 3/8
Height (in)7 7/8
Depth (in)11 3/4
Height (cm)20
Width (cm)24
Depth (cm)30
DescriptionDigital Megohmmeter, 10 kV (0.001 to 9999 µF / 10.00 to 49.99 µF)
Warranty1 Year
