Traceable® Certificate, pressure sensor, two 19"L sections of flexible tubing, hard-sided carrying case, and battery.
Key Features
Measure and display pressure/vacuum in 11 different units
Obtain fast results—0.5 second response time!
Recall Min/Max readings and zero the meter with the press of a button
Freeze the display with HOLD feature
Connect tubing with 1/16 to 3/16” (1.6 to 4.8 mm) inner diameter
Measures from -5 to 5 psi
Includes NIST-traceable certificate from our A2LA accredited (1750.01) calibration laboratory
More About this Item

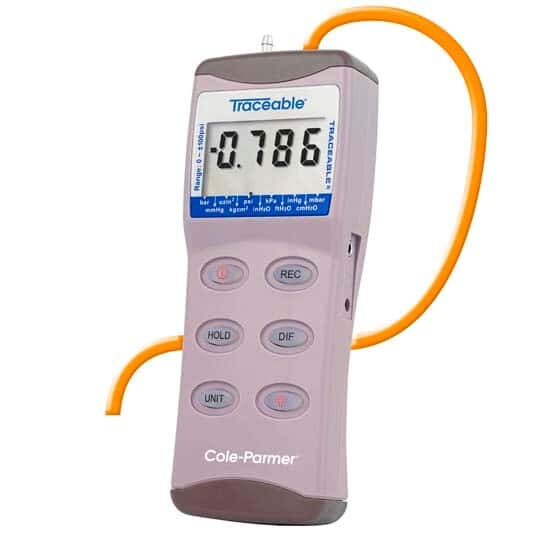

Read and display 11 different pressure/vacuum units of measure: psi, mbar, bar, cm/H2O, inch/H2O, feet/H2O, mm/Hg, inch/Hg, kg/cm2, oz/inch2, kPa with this digital manometer. Meter takes either gauge pressure/vacuum or differential pressure measurements. The backlit digital display, 5/8" H LCD, is easy to read—even from 6-ft away. Typical response time is 0.5 seconds. Use the REC function with count-up timer for Min/Max readings over a set period of time and HOLD function to freeze the display.
Traceable® Products come with an individually numbered Traceable® Certificate provided with each unit, assuring accuracy from our ISO/IEC 17025:2017 (1750.01) calibration laboratory, accredited by A2LA. The certificate indicates traceability of measurements to the SI units through NIST or other recognized national measurement institutes (NMIs) that are signatories to the CIPM Mutual Recognition Agreement. Every Traceable® product undergoes an intense vetting process before it can carry the Traceable name, saving you both time and money by eliminating the need for separate calibration.
Guaranteed to have at least one year of calibration remaining on certificate.
Specifications
Accuracy±0.3% of full scale at ±25°C
Min Pressure (PSID)-5
Max Pressure (PSID)5
Min Pressure (in WC)-138
Max Pressure (in WC)138
Min Temperature (° F)32
Max Temperature (° F)122
Min Temperature (° C)0
Max Temperature (DegreeC)50
Max Vacuum (" Hg)-10
Min Vacuum (" Hg)10
Process Connection1/16 to 3/16” (1.6 to 4.8 mm) hose barb
Unit Of Measurementpsi, mbar, bar, cm/H2O, "H2O, ft/H2O, mm/Hg, "Hg, kg/cm2, oz/inch2, kPa
