Cole-Parmer Industrial Bimetal Thermometer, 3” Dial, Back Connect, 9” Stem, 0/250F & -20/120C

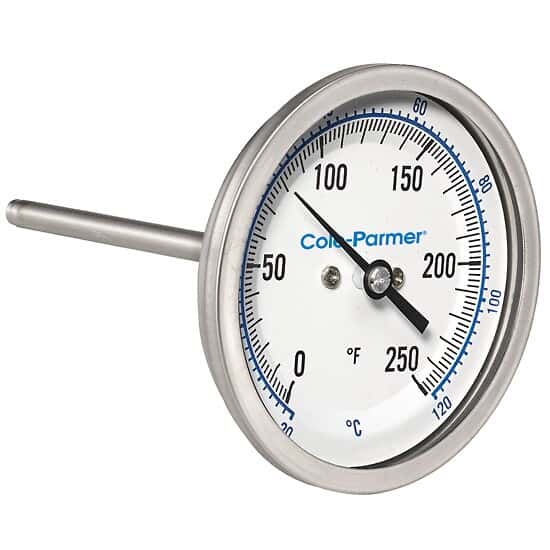

Representative image only.
Cole-Parmer Industrial Bimetal Thermometer, 3” Dial, Back Connect, 9” Stem, 0/250F & -20/120C
Read two scales simultaneously
- Easy-to-read dual °F/°C scales provide enhanced flexibility ... READ MORE
£67.04GBP / Each
£80.45GBP (incl VAT)
for an additional
£89.40GBP / Each
£107.28GBP (incl VAT)
for an additional
£164.55GBP / Each
£197.46GBP (incl VAT)
£67.04GBP / Each
£80.45GBP (incl VAT)
Buy It Together
Current Item
Cole-Parmer Industrial Bimetal Thermometer, 3” Dial, Back Connect, 9” Stem, 0/250F & -20/120C
9059003
£67.04GBP / Each
£80.45GBP (incl VAT)
1700300
£89.40GBP / Each
£107.28GBP (incl VAT)
Product Description
Key Features
- Easy-to-read dual °F/°C scales provide enhanced flexibility
- Anti-parallax dished dial for superior readability
- Durable all-welded stainless steel construction for tough environments
- Prevent dial fog, entry of moisture, interior corrosion, and coil freeze up with hermetically sealed case
- Rugged NEMA 4X/IP66 protection
- Recalibrate using the external reset screw
- ±1% full-scale accuracy according to ASME B40.200 (B40.3 Grade A)
- Designed with 3" diameter dial
- Constructed with durable 9" long stainless steel stem
- Thermometer features a 0 to 250°F (–20 to 120°C) temperature range
- 5 year warranty
More About this Item
The Cole-Parmer® industrial bimetal thermometers feature NEMA 4X/IP66 protection for tough applications. Accuracy is ±1% full-scale when stem is immersed 2" in liquids or 4" in gases (immerse models with a 2.5" stem length 2" in gases). Stem length is measured from the top of the threads to the bottom of the stem tip. Stem diameter is 0.25” with a ½” NPT(M) back connection. Maximum overtemperature for thermometers with a max temperature of 250°F is 100% of span, and thermometers with a max temperature of 550°F is 50% of span. The ambient temperature range limits are –40 to 200°F (–40 to 93°C).
Specifications
- Min Temperature (° F)0
- Min Temperature (° C)-20
- Max Temperature (° F)250
- Max Temperature (° C)120
- Accuracy±1%
- Division (° C)2
- Division (° F)2
- Thermometer FillNo Fill
- Dial Size (in)3
- Dial / Case Material304 stainless steel case and stem; glass window
- Overall Length (InchShort)9.875
- Overall Length (mm)250.825
- Stem Length (in)9
- Stem Diameter (in)0.25
- Stem Material304 stainless steel
- Connection1/2" NPT (M)
- ASTM NumberASME B40.3
- DescriptionIndustrial Bimetal Thermometer, 3” Dial, Back Connect, 9” Stem, 0/250F & -20/120C
- Warranty5 years
