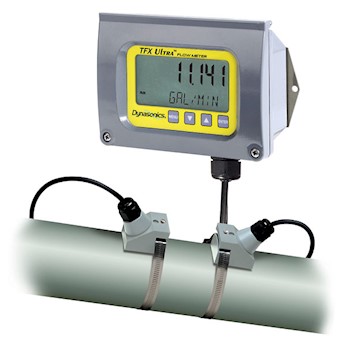

Dynasonics DTTSLP-020-N-000 Ultrasonic Flow Transducer for 2" ANSI Pipe, 8 to 420 GPM (30 to 1590 LPM)

Dynasonics DTTSLP-020-N-000 Ultrasonic Flow Transducer for 2
Zoom Image
Representative image only.
Add to Compare
Dynasonics – Mfr # DTTSLP-020-N-000 – Item # WZ-32617-36
Write a Review
No need to shut down the process for installation or maintenance due to clamp-on sensor design
  • Bidirectional flow measurement system
  • Large, easy-to-read digital display
  • Rate and total backlit display
  • 4 to 20 mA output
  • RS-485 Modbus network connection
MORE +

PRODUCT OPTIONS

See All 13 Items in this Product Family

£612.00GBP / Each
£734.40GBP (incl VAT)
Add To Cart
+ADD TO LIST

SPECS & DESCRIPTION

Specifications & Description

  • Accuracy±1% of reading or ±0.01 ft/sec (0.003 m/s), whichever is greater
  • Material HousingPowder-coated aluminum, PP, SS, polyurethane, nickel-plated steel mounting brackets
  • Wetted MaterialsCPVC, Ultem®, nylon, and PVC
  • Min Operating Temperature (° F)-40
  • Min Operating Temperature (° C)-40
  • Max Operating Temperature (° F)185
  • Max Operating Temperature (° C)85
  • Pipe Size2" ANSI
  • Fluid TypeWater
  • Output (mA)Yes
  • Output4 to 20 mA
  • Display Type2-line LCD, LED backlight. Top row: 7 segment 0.7"H. Botton row: 0.35"H
  • CommunicationsRS-485
  • Enclosure RatingIP65
  • DescriptionUltrasonic Flow Transducer for 2" ANSI Pipe, 8 to 420 GPM (30 to 1590 LPM)

Key Features

  • Bidirectional flow measurement system
  • Large, easy-to-read digital display
  • Rate and total backlit display
  • 4 to 20 mA output
  • RS-485 Modbus network connection
  • Remote totalizer reset
  • 0 to 1000 Hz rate pulse and dual alarm output
  • USB programming port with software included
  • Rugged, aluminum enclosure ensures a long service life in harsh environments
  • Totalizer options include forward, reverse, and net total
  • Use to measure clean liquids as well as those with small amounts of suspended solids or aeration

More About this Item

Order Flowmeter 32617-24 with your transducer for a complete system!
Ultrasonic flowmeters clamp onto the outside of pipes and do not contact the internal liquid. The technology has inherent advantages over alternate devices including low-cost installation, no pressure head loss, no moving parts to maintain or replace, no fluid compatibility issue, and a large, bidirectional measuring range that ensures reliable readings even at very low and high flow rates. Flowmeters are available in a variety of configurations — select a meter with features suitable to meet your particular application requirements.

REVIEWS

Q&A

Do you have questions about this product?

Get answers from real customers and in-house experts with AnswerBox.

1 Question | 1 Answer
Displaying question 1

  • Q:

    Will this flow meter work with PVC, Carbon Steel, Stainless Steel, and Copper?
    Asked on 1/30/2017 by Gene Kempers from Sioux City, Iowa

    1 answer

    • STAFF EXPERT

      A:

      32617-36 is just the transducer. Will work with ANSI pipe; PVC, Carbon Steel, Stainless Steel. For copper pipe use part number 32617-48.

      Answered on 1/31/2017 by Jeff from Technical Support
